T-MAX FAN SERIES
Application Areas
Used in industrial ventilation applications, air conditioning units, and similar systems.
Fan Components and Material Properties
The body is made of high-quality steel resistant to corrosion. The fan blades are welded, electrostatically powder-coated, backward-curved, and designed with an aerodynamic structure to ensure smooth airflow. The motor and fan impeller are connected to the main body via a steel base.
All models are equipped with asynchronous motors and are compatible with speed control systems.
Technical Specifications
• Airflow Rate: 5,000 – 74,000 m³/h
• Pressure: 100 – 2,300 Pa
• Rotation Speed: 420 – 1,470 rpm
• Power: 7.5 – 37 kW
• Phase / Voltage / Frequency: 3~400-50 V-Hz
• Motor Efficiency Class: IE3, IE4
• Motor Insulation Class: F (155 °C)
• Motor Protection Class: IP55
• Operating Temperature: -20 °C to +45 °C

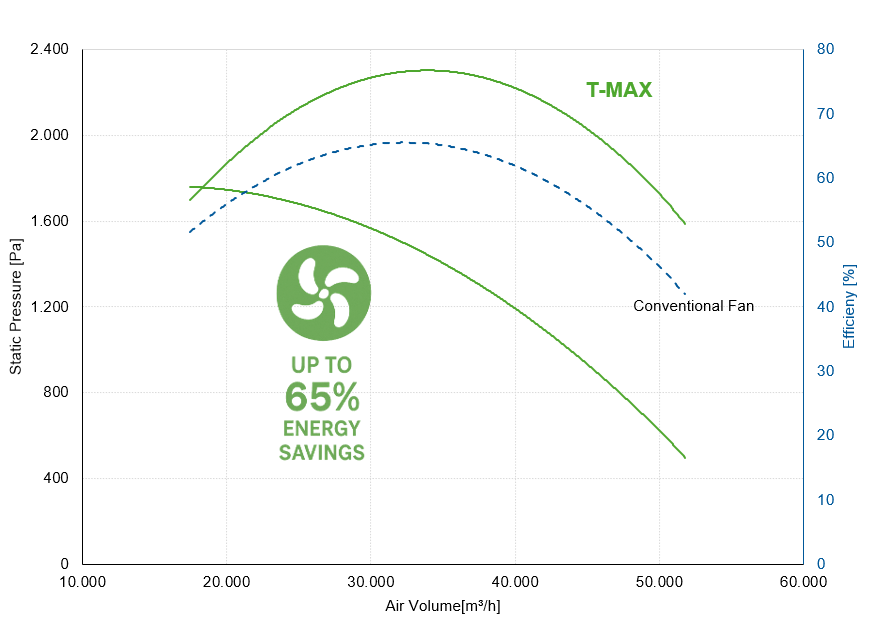

PERFORMANCE

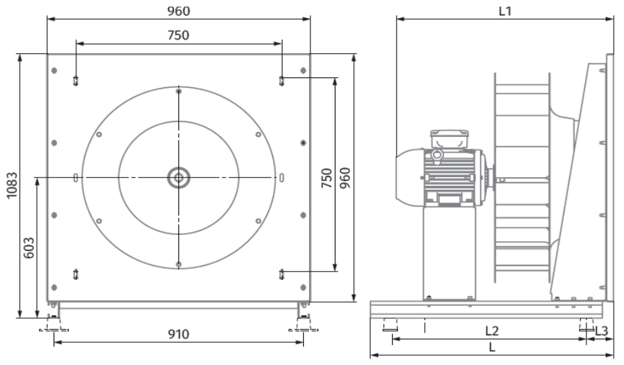

| Model | L [mm] | L2 [mm] | L3 [mm] | Weight [kg] |
|---|---|---|---|---|
| T-MAX 8 | 1045 | 869 | 20 | 173 |
| T- MAX 9 | 1045 | 920 | 30 | 182 |
| T-MAX 10 | 1045 | 930 | 40 | 263 |
